To learn how to connect a soundbar with RCA cables, identify a genuine red-and-white audio output on the TV and matching analog inputs on the soundbar. Match red to right and white to left, select the analog input, and test at moderate volume. Many newer TVs and soundbars do not include RCA audio ports, so read the labels before buying a cable.

First: verify the direction of every port

RCA sockets look identical whether they are inputs or outputs. The TV must say Audio Out, Line Out, Monitor Out, or a similar output label. Sockets marked AV In, Component In, or Audio In cannot send sound. The soundbar side must be labeled AUX In, Analog In, Line In, or Audio In.

If the TV has only a headphone jack, use a 3.5mm-to-RCA cable. If it has only optical output and the soundbar has only RCA input, you need an active digital-to-analog converter—not a passive cable. Our port-matching guide helps identify the correct route.

Connect RCA to RCA

  1. Turn off the TV and soundbar.
  2. Insert the red plug into the TV’s right-channel audio output and the white plug into the left-channel output.
  3. Connect the opposite ends to the soundbar’s matching right and left analog inputs.
  4. Turn on the TV and select External Speakers, Audio Out, or the equivalent if available.
  5. Select AUX, Analog, or Line on the soundbar.
  6. Start at low soundbar volume and play a familiar program.

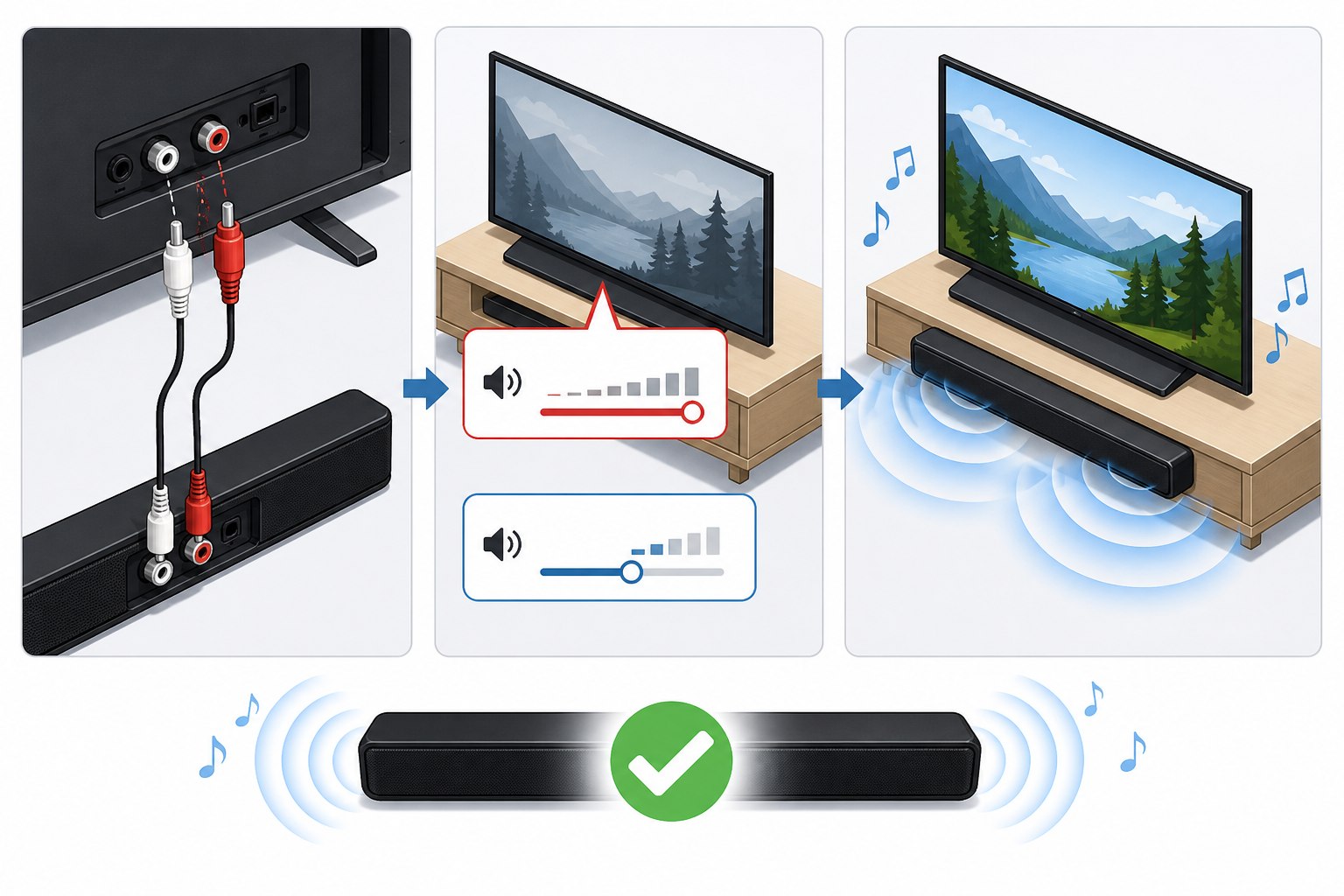

RCA soundbar setup matching television audio output to left and right soundbar inputs
Follow the OUT-to-IN direction and keep red on the right channel and white on the left.

Set volume correctly

A fixed line output sends a constant level, so use the soundbar remote for volume. A variable audio output changes with the TV volume; set the TV around the middle of its range, then adjust the soundbar. If the sound distorts, lower the TV output. If it is noisy and weak, raise the TV level modestly and reduce the soundbar gain.

Fix no sound, hum, or one missing channel

  • No sound: confirm the TV sockets say OUT, select the soundbar’s analog input, and check the TV output menu.
  • One channel: reseat both plugs and swap the cable ends. A fault that changes sides points to the cable or source.
  • Hum: route audio away from power adapters, try one shared power strip, and replace a damaged cable.
  • Very low volume: check whether the TV output is variable and raise it carefully.

If a straightforward cable is appropriate, compare a stereo RCA audio cable. For optical-out TVs feeding an RCA-only soundbar, compare an optical-to-RCA DAC and set the TV’s digital output to PCM. For modern equipment, HDMI or optical may be simpler.

Frequently asked questions

Can yellow, red, and white AV cables connect a soundbar?

Use only red and white for stereo audio. Yellow carries composite video and is not used by the soundbar.

Will RCA carry surround sound?

No. A red-and-white RCA pair carries two-channel analog audio. The soundbar may create a virtual surround effect, but the connection itself is stereo.

Can I plug RCA cables into the TV’s component inputs?

No. Component and AV inputs receive signals; they do not output the TV’s program audio.

Still need help choosing a connection or troubleshooting your setup? Try the AAHE Gadget Wiz for guided help with your TV, soundbar, cables, and settings.
