An over-the-air TV antenna can receive free local channels, but small changes in direction and height can determine whether the picture is reliable or constantly breaks up. The goal is not simply to point the antenna toward the nearest city. You need to account for the locations of individual broadcast towers, the antenna’s reception pattern, terrain, building materials, and signal reflections.

Find the broadcast towers serving your address

Start with a reputable online reception map and enter your location. Note the compass direction, distance, channel band, and predicted signal strength for the stations you want. Several stations may broadcast from one tower cluster, while another important station may be in a different direction. Use the magnetic compass on a phone only after moving away from large metal objects that can disturb it.

Identify whether the antenna is directional

A directional antenna concentrates reception in one direction and is useful when most towers are grouped together. A multidirectional antenna accepts signals across a wider arc and can help when towers are spread out, although it may receive more reflected signals. Most flat indoor antennas have a front and back but little reception from their narrow edges. Traditional outdoor antennas generally point with their narrow end toward the towers.

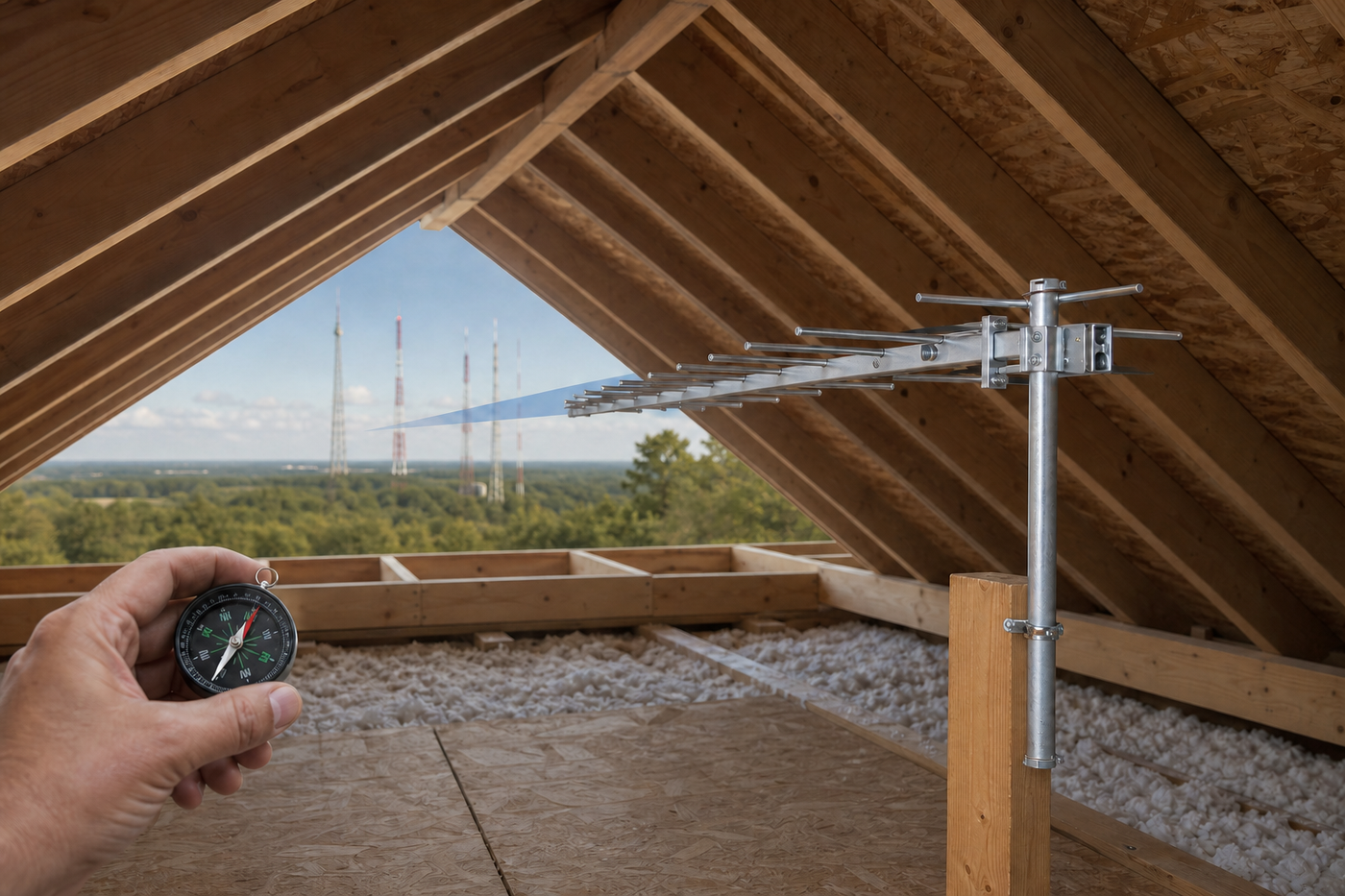

Attic-mounted TV antenna being aimed toward towers using a compass
Use tower direction and small aiming adjustments to improve reception.

Choose height before fine-tuning direction

Place an indoor antenna high on a window or exterior wall, preferably facing the towers. Keep it away from the TV, metal blinds, wiring bundles, appliances, and LED power supplies. In an attic, avoid foil-backed insulation, metal roofing, and HVAC equipment. An outdoor antenna usually performs best above the roofline with a clear view, but installation must follow electrical, grounding, and ladder-safety requirements.

Aim, scan, record, and repeat

  1. Point the antenna toward the main tower cluster.
  2. Run the TV’s full channel scan.
  3. Record which important channels are stable, weak, or missing.
  4. Rotate the antenna about 10 degrees and scan again.
  5. Repeat on both sides of the starting direction.

Some televisions offer a signal-strength meter. Use it to make small adjustments, but wait several seconds after every movement because the reading may respond slowly. Test at different times of day and during ordinary household activity.

Understand real channel and virtual channel numbers

The familiar channel number shown on-screen may not be the frequency the station actually uses. A station branded as channel 7 may transmit on a UHF frequency, for example. Reception maps identify the real RF channel. This matters because some compact antennas are weak on VHF, especially VHF-Low. Choose an antenna designed for the bands used in your area.

Compare directional VHF/UHF TV antennas on Amazon or TV antenna signal meters on Amazon. Confirm the antenna supports the RF bands used in your area.

Use amplification only when it solves the right problem

A preamplifier near the antenna can offset loss from a long coaxial run. A distribution amplifier can help when one antenna feeds several televisions. Amplification cannot create a signal the antenna does not receive, and an overly strong amplifier can overload a tuner. Test without amplification first when towers are nearby.

What to do when towers are in opposite directions

Try a multidirectional antenna, a rotator, or two carefully combined antennas. Combining antennas can cause phase cancellation, so it is not always plug-and-play. A separate tuner or networked antenna receiver may be simpler when household members need stations from different directions at the same time.

If you want interactive help choosing placement and troubleshooting missing stations, Gadget Wiz may be able to assist with your antenna setup.

Frequently asked questions

Does the wide side or narrow end point toward the tower?

It depends on the design. Flat antennas usually face the tower with their broad surface; traditional directional antennas usually point their narrow end toward it. Follow the manufacturer’s diagram.

Must I rescan after moving the antenna?

Yes. Many TVs will not add a newly available station until you run another channel scan.

Will a higher antenna always work better?

Often, but not always. Reflections can create a better reception spot slightly lower or to one side, so test before permanently mounting it.
