How to Connect a Soundbar with HDMI eARC

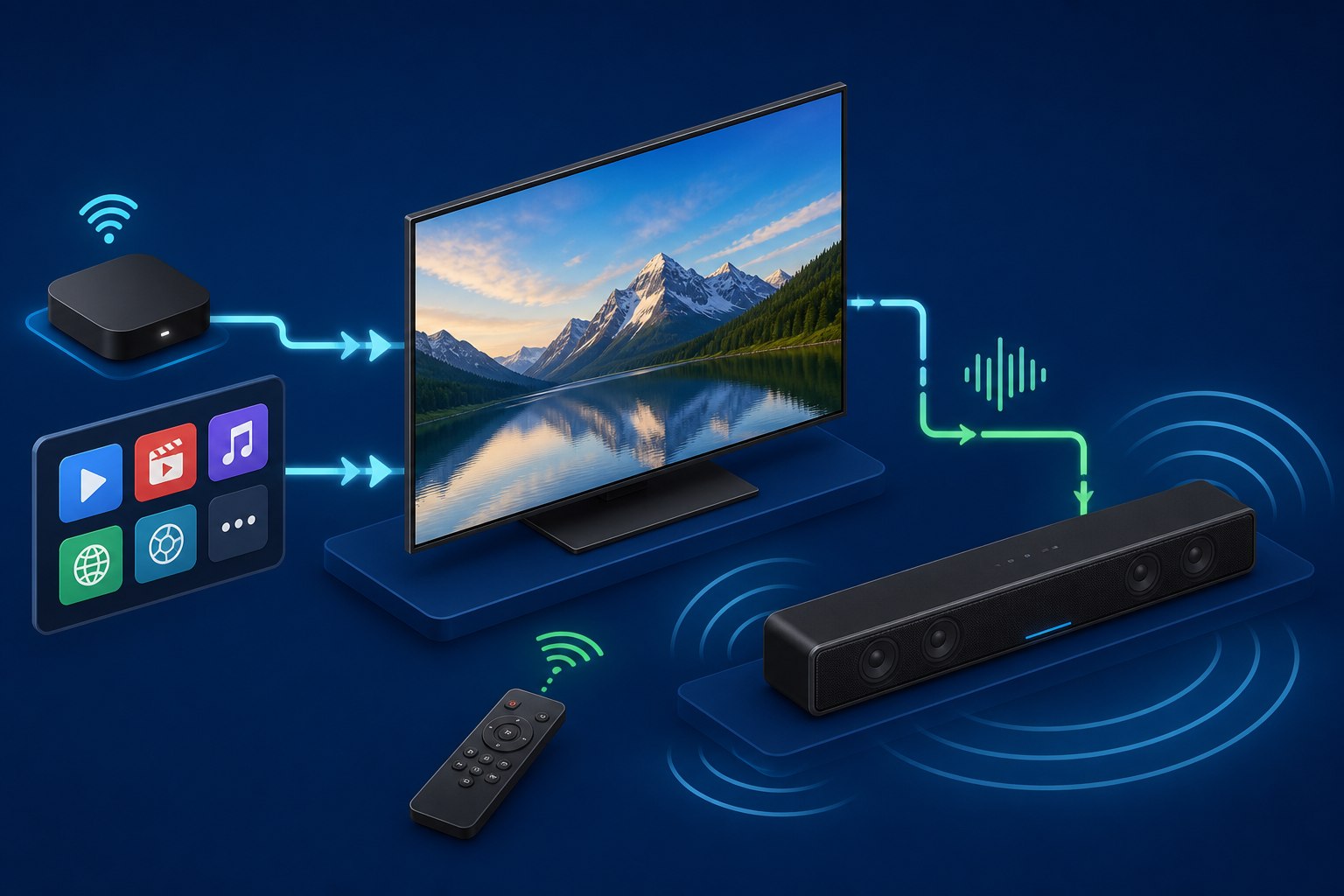

To connect a soundbar with HDMI eARC, join the TV’s HDMI port labeled eARC/ARC to the soundbar’s HDMI OUT port labeled eARC/ARC, enable HDMI-CEC and eARC, then select the audio system as the TV output. The labels matter: ordinary HDMI ports do not automatically carry return audio.

Before you connect anything

• Confirm that both the TV and soundbar explicitly support eARC.
• Use a certified cable appropriate for eARC and for any video passing through the soundbar.
• Update both devices before troubleshooting advanced formats.
• Note the manufacturer’s name for HDMI-CEC, such as Anynet+, Simplink, BRAVIA Sync, or VIERA Link.

HDMI eARC setup: step by step

1. Turn off the TV and soundbar.
2. Connect the TV’s HDMI eARC/ARC port to the soundbar’s HDMI OUT (TV-eARC/ARC) port.
3. Turn on the TV, then the soundbar.
4. Select TV, eARC, or D.IN on the soundbar as its manual specifies.
5. Set the TV speaker output to Audio System, Receiver, or External Speakers.
6. Enable HDMI-CEC on the TV and Control for HDMI on the soundbar.
7. Set eARC mode to Auto or On and digital audio output to Auto or Pass Through.
8. Play known compatible content and check the soundbar’s info display or app for the received format.

How to verify eARC is actually working

Volume should respond through HDMI-CEC, TV apps should play through the soundbar, and supported high-bitrate audio should reach the soundbar when the source, app, TV, and soundbar all support it. An Atmos badge alone does not prove a lossless format; streaming services commonly use compressed Dolby Digital Plus, while disc sources may use Dolby TrueHD.

If you only need standard ARC, use the HDMI ARC setup guide. The ARC explainer helps identify compatible ports.

Fix common eARC problems

• No sound: reseat the cable, confirm both labeled ports, select external audio, and power-cycle both devices.
• Sound but no advanced format: verify the content, source output, TV passthrough, eARC mode, and soundbar codec support.
• Intermittent audio: update firmware, simplify the HDMI chain, and test a shorter certified cable.
• Older ARC soundbar goes silent: turn eARC off and use ARC mode.
• Remote control fails: enable CEC on both devices and remove conflicting HDMI devices one at a time.

If a replacement is justified, compare a certified Ultra High Speed HDMI cable. For installations behind furniture, a properly oriented HDMI adapter can reduce strain, but every added connection is another possible failure point.

Frequently asked questions

Will eARC work if only one device supports it?

Not as a full eARC link. Some products can fall back to ARC, but compatibility is implementation-dependent; check both manuals.

Do I need HDMI 2.1 for eARC?

eARC was introduced with HDMI 2.1, but manufacturers may implement features selectively. Trust the eARC port label and product documentation rather than the headline HDMI version alone.

Should eARC be On or Auto?

Auto is the best starting point when both products support eARC. Turn it off temporarily when testing an older ARC-only device.

Still need help choosing a connection or troubleshooting your setup? Try the AAHE Gadget Wiz for guided help with your TV, soundbar, cables, and settings.
