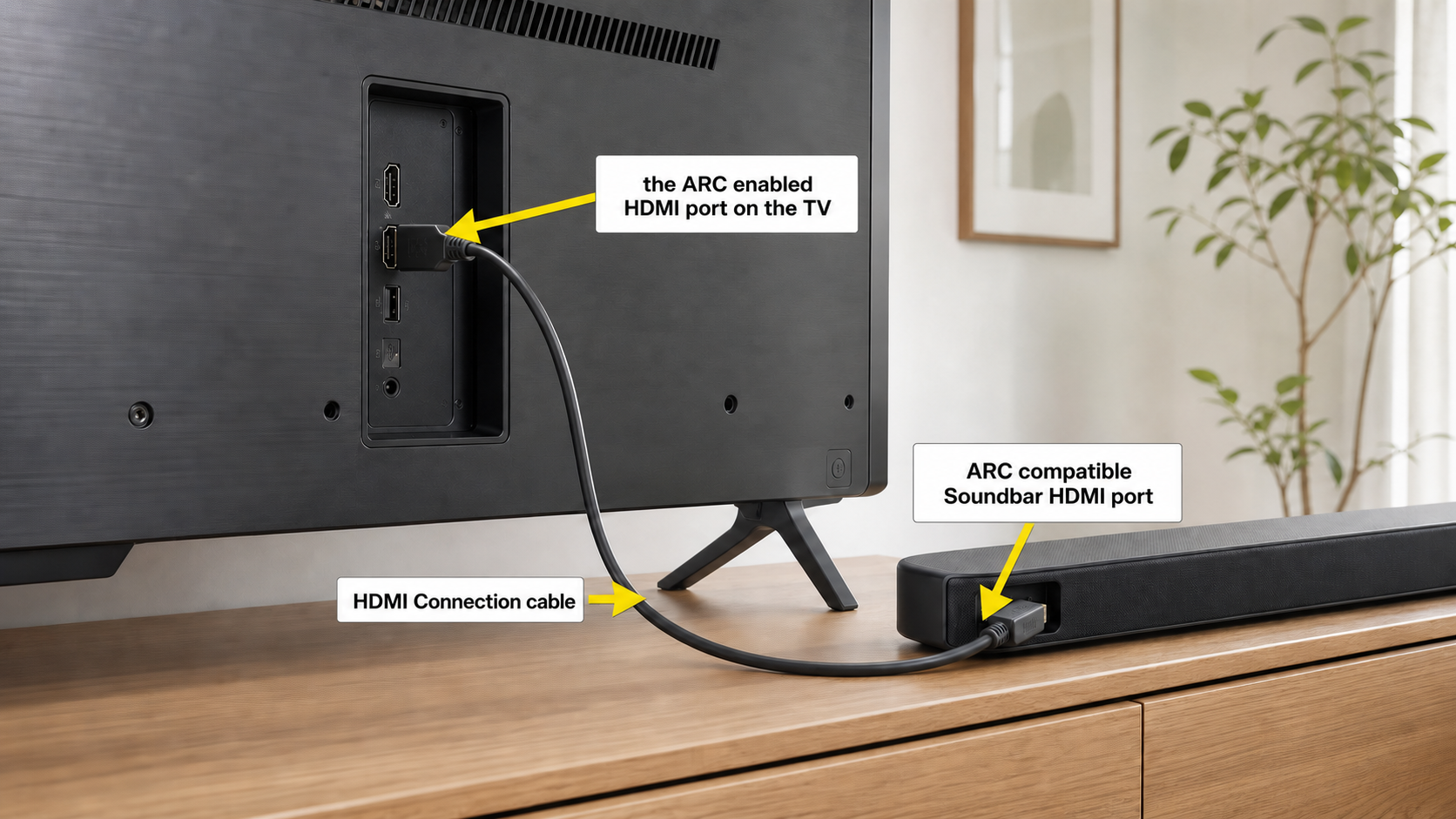

Yellow arrows identify the TV ARC HDMI port, HDMI cable, and soundbar ARC HDMI port
The yellow arrows identify the ARC-enabled HDMI port on the TV, the HDMI connection cable, and the ARC-compatible soundbar HDMI port.

Quick answer: HDMI ARC—Audio Return Channel—lets a compatible television send its audio back through one HDMI cable to a compatible soundbar or receiver. Look for an HDMI port labeled ARC or eARC on the TV and a corresponding TV ARC/eARC port on the soundbar. A plain HDMI port without that feature normally cannot perform the return-audio job.

Safety first: Turn off the TV, soundbar, and connected source devices before moving cables. Never force an HDMI plug, open either device, or continue using a cable, port, or power cord that is bent, loose, hot, wet, burnt, or visibly damaged.

This guide explains what HDMI ARC does, how it differs from eARC, how to check whether your equipment supports it, and when optical audio may be the simpler fallback. If you already know both devices support ARC and want the installation steps, use our soundbar-to-TV HDMI ARC setup guide. If the connection is already installed but silent, go to Soundbar HDMI ARC Not Working? 12 Safe Checks.



What HDMI ARC actually does

Most HDMI connections carry picture and sound from a source toward a TV. ARC adds a return path so the TV can send audio in the opposite direction to a soundbar or audio/video receiver. That returning audio can come from the TV’s built-in streaming apps, over-the-air tuner, or another source connected to the TV.

The practical benefit is fewer cables. Without ARC, a typical installation may use HDMI for picture plus a separate optical cable for TV audio. With ARC, one HDMI cable between the correct TV and soundbar ports can handle the return-audio connection. Compatible HDMI control features may also let the TV remote adjust soundbar volume and coordinate power, although manufacturers give HDMI-CEC different names and device combinations do not always behave identically.

ARC versus eARC

Feature HDMI ARC HDMI eARC
Main purpose Return TV audio to a soundbar or receiver The same purpose with greater audio capability and improved device communication
Typical audio Stereo PCM and compressed multichannel formats, subject to both devices Can support higher-bitrate and uncompressed multichannel formats, subject to both devices and content
Immersive audio May carry compressed Dolby Atmos in some compatible setups Designed to support high-bitrate formats such as Dolby TrueHD/Atmos and DTS:X when every device and source supports them
Compatibility Requires ARC at both ends Requires eARC at both ends for full eARC capability; an eARC product is not automatically guaranteed to work with every ARC product
Cable choice A sound High Speed HDMI cable is commonly suitable Use the cable type recommended by both manufacturers; Ultra High Speed HDMI is the straightforward certified choice for current eARC installations

Do not treat “eARC” as a promise that every audio format will play. The source program, streaming service, TV, soundbar, cable, and audio settings all influence the final result. A TV may also reformat, limit, or refuse an audio format it cannot pass through.

How to tell whether your TV supports HDMI ARC

  1. Inspect the HDMI labels. Look beside the TV’s HDMI inputs for ARC or eARC/ARC. Only one HDMI input may have the feature.
  2. Check the model manual. Search the official manual or support page for “Audio Return Channel,” “ARC,” or “eARC.” Port labels can be hard to see on a wall-mounted TV.
  3. Review the sound menu. Options such as HDMI ARC, eARC Mode, Receiver, Audio System, External Speaker, or HDMI audio output are clues, but names vary.
  4. Confirm HDMI control support. ARC setups often use HDMI-CEC. TV makers may call it Anynet+, BRAVIA Sync, Simplink, VIERA Link, or another brand-specific name.

If neither the port nor the official manual identifies ARC, do not assume a normal HDMI input supports it. An HDMI connector’s physical shape alone does not reveal the features implemented by the device.

How to tell whether your soundbar supports ARC

On a soundbar, find the HDMI connector labeled HDMI OUT (TV ARC), HDMI TO TV (eARC/ARC), or similar. This is easy to confuse with an HDMI IN connector intended for a streaming player, game console, or disc player. For the TV-audio return path, use the soundbar’s designated TV OUT/ARC port.

Then confirm the required soundbar input mode in its manual. Depending on the model, it may be called ARC, eARC, TV, TV-ARC, HDMI, D.IN, or OPT/HDMI ARC. A correct cable connection can remain silent until the matching soundbar function is selected.



What you need for an ARC connection

  • A TV with an HDMI port labeled ARC or eARC
  • A soundbar with a corresponding TV ARC/eARC HDMI port
  • One known-working HDMI cable that meets the equipment makers’ recommendations
  • Access to both manuals or official support pages
  • The TV and soundbar remotes

If you need a replacement for testing, you can view this HDMI cable on Amazon*. Confirm the required length and the cable recommendation in both manuals before purchasing; a new cable cannot add ARC to equipment that does not support it.

What ARC does not do

  • ARC does not make every HDMI port bidirectional. The feature must be implemented and identified on the devices.
  • ARC does not guarantee one-remote operation. HDMI-CEC behavior varies by brand, model, firmware, and connected-device combination.
  • ARC does not improve a poor original soundtrack. It transports the audio the TV makes available.
  • ARC does not guarantee every surround format. Both devices, the source, the app, and the TV’s passthrough settings must support the format.
  • ARC does not require routing every source through the soundbar. Many installations connect sources to the TV and return their audio through ARC.

When optical audio may be the better fallback

Use an optical Toslink connection when one device lacks ARC, HDMI control remains unreliable, or the audio formats you need fit within the optical connection’s limits. Optical usually carries stereo PCM and commonly supported compressed surround formats, but it does not provide the full high-bandwidth capabilities of eARC. It also normally requires a separate method for coordinated power or volume.

For a wider view of HDMI, optical, and speaker connections, see How to Hook Up Surround Sound. The older product examples in that legacy guide differ from current equipment, but the connection-type overview remains useful.

Need help identifying the correct ports or settings?

Use Gadget Wiz Soundbar & Audio Setup Help. Have the exact TV and soundbar model numbers, photos of both connection panels, the cable type, and the current sound-output settings ready.

A quick ARC support checklist

  • The TV has an HDMI port explicitly labeled ARC or eARC.
  • The soundbar has a TV ARC/eARC HDMI output.
  • The cable connects those two designated ports—not two ordinary HDMI inputs.
  • The TV is set to its external audio system or HDMI ARC output.
  • The soundbar is on its ARC/TV audio function.
  • HDMI control and eARC settings match the manuals.
  • The source audio format is supported by the complete connection path.

Once those points are confirmed, continue with How to Connect a Soundbar to a TV Using HDMI ARC. If each point appears correct but audio is missing, use the 12-step ARC troubleshooting guide.



Frequently asked questions

Can I use HDMI ARC if my soundbar has only HDMI IN?

Usually no. The soundbar needs a port specifically intended for the TV ARC/eARC connection, often labeled HDMI OUT (TV ARC) or HDMI TO TV (eARC/ARC). Check the manual because labels vary.

Does every HDMI cable support ARC?

ARC is a device feature, but the cable must also be sound and suitable for the installation. Follow both manufacturers’ cable guidance. For current eARC installations, an officially certified Ultra High Speed HDMI cable is the simplest broadly capable choice.

Do I need eARC for Dolby Atmos?

Not in every case. Some services deliver Dolby Atmos in a compressed format that compatible ARC equipment may carry. Lossless or higher-bitrate immersive formats generally require the added capability of eARC and compatible equipment throughout the path.

Can an eARC TV work with an ARC soundbar?

It may operate at ARC capability when both manufacturers support that combination, but HDMI Licensing Administrator notes that eARC is not defined as automatically backward-compatible with ARC. Check the manuals and support information for the exact models.

Why does the TV remote sometimes control the soundbar?

That behavior usually comes from HDMI-CEC rather than ARC itself. ARC carries returned audio; CEC supplies compatible device-control commands. Both features may need to be enabled.
